Dispersers and Agitators

Drum Mixers for Dispersions & Agitations

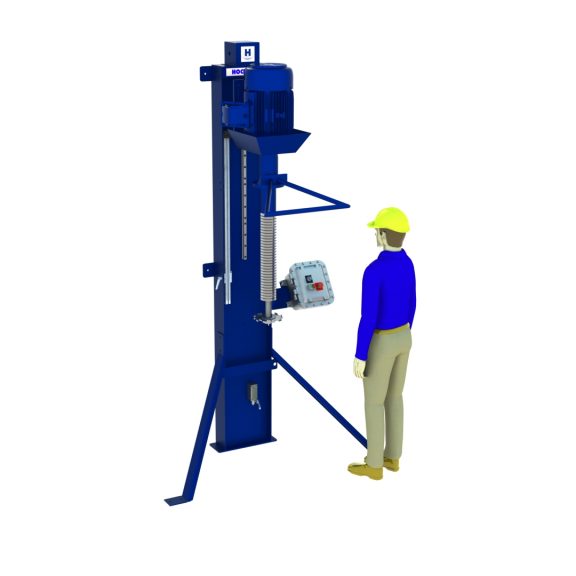

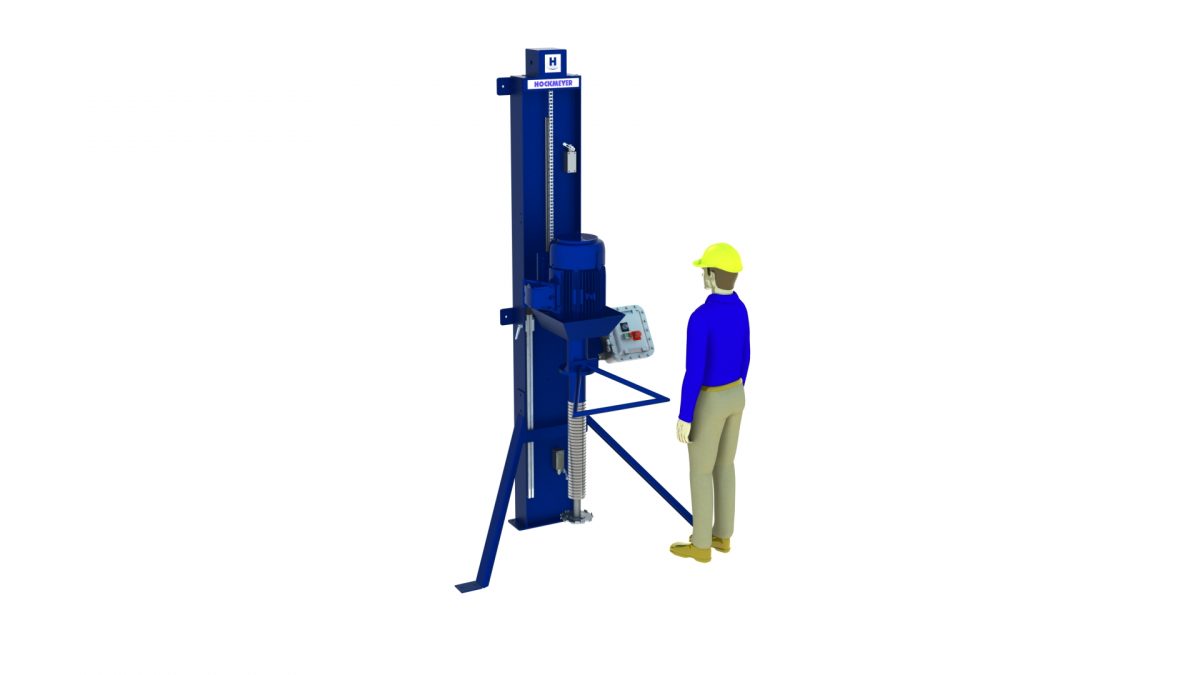

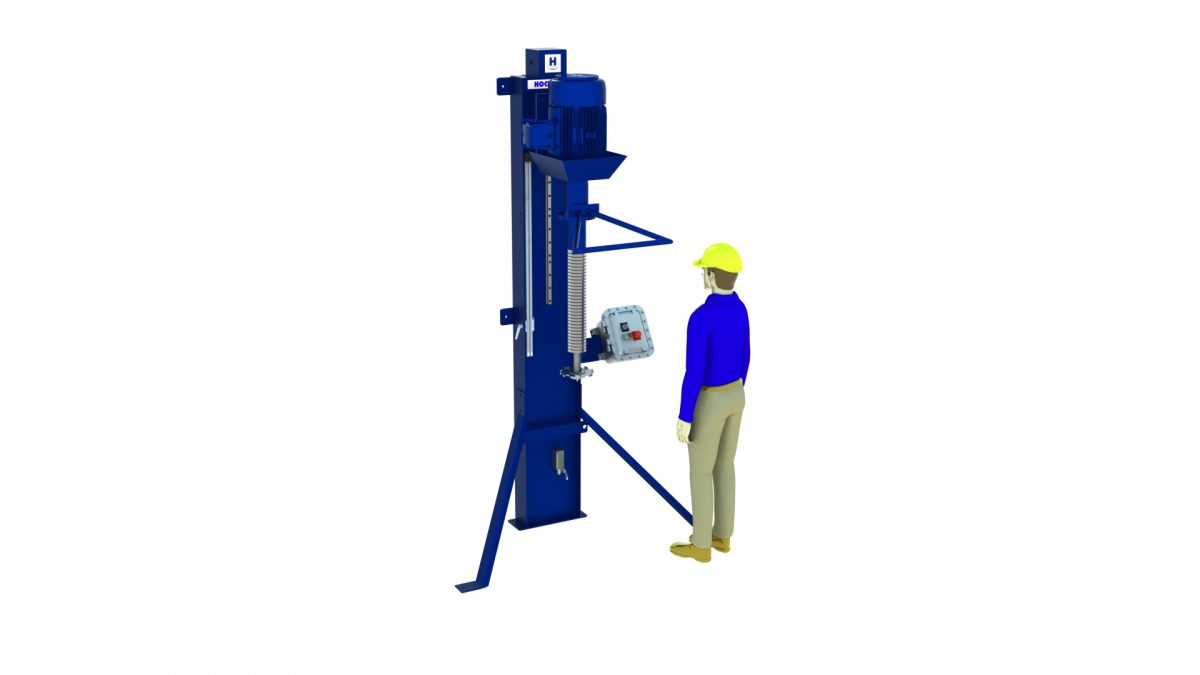

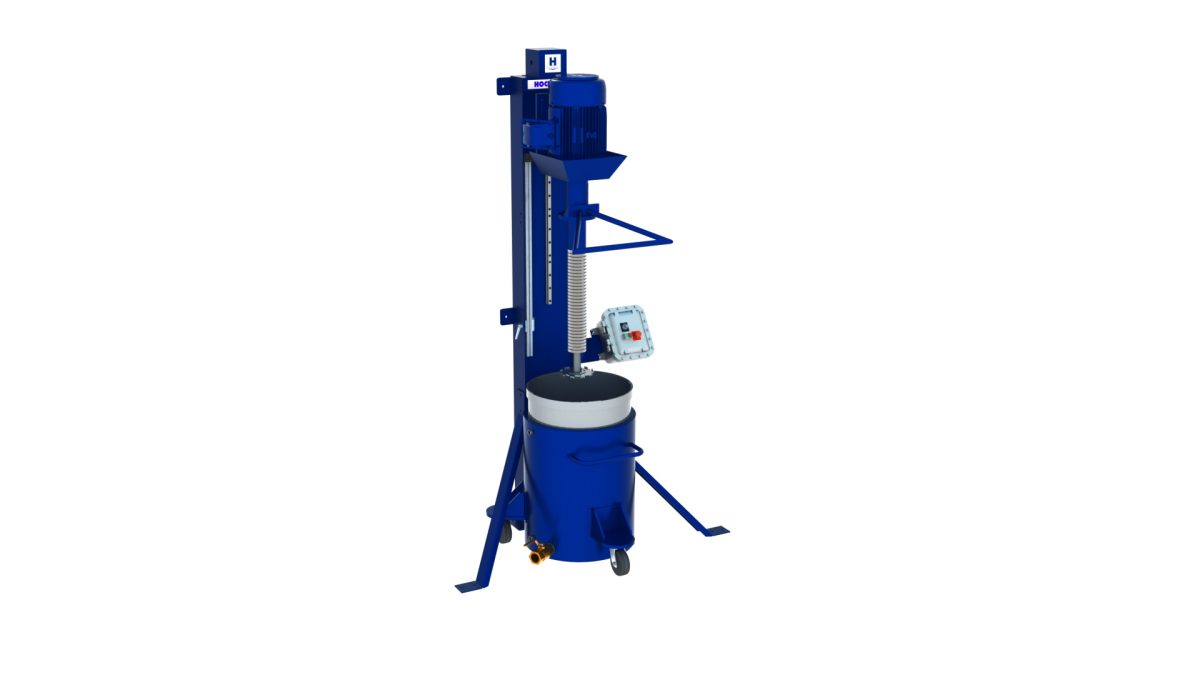

The drum mixer provides Hockmeyer's unparalleled mixing technology in a convenient and compact design for wall mounting or free standing with the addition of support legs. The drum mixer is engineered specifically for a standard 55-gallon drum but is able to process batches as small as 3 gallons in a 5-gallon pail. It can accommodate any style of blade needed to get the best dispersion in the least amount of time.

Features & Specifications

Machine Features

  • 15 Horsepower Explosion Proof Motor
  • 138″ Overall Height, 36″ Stroke, 22″ Width
  • Variable Frequency Inverter
  • 8″ Diameter ‘D’ Style Blade
  • Start and Stop Push Buttons and a Speed Potentiometer
  • Safety Features include a Height Limit Switch and Can Lock
  • Unit is mounted and counterbalanced on the column for manually raising and lowering the machine

Optional Features

  • Legs available for Floor Mounting
  • Small Batch Processing – Drum Mill and Mixers can be mounted to a rail system, which allows the mixer and mill to slide from side to side in order to service multiple drums.
  • 15 HP explosion-proof motor
  • 138″ overall height – 36″ stoke -22″ width
  • Variable frequency inverter
  • Unit is mounted and counterbalanced on the column for manually raising and lowering the machine
  • 8″ Diameter ‘D’ style blade
  • Start and Stop push buttons and a speed potentiometer
  • Safety features
