Wall and bottom scrapers are blades configured to follow the vessel contour during high-viscosity mixing, continuously clearing material off the wall and base surfaces and folding it back toward the active shear zone. Their purpose is to prevent stationary boundary layers that form on every unswept surface in laminar flow, since these would undermine batch uniformity, compromise thermal control, and distort the formulation data.

This is a common issue: while the center of the batch appears thoroughly mixed, material sticks to the vessel walls and collects at the bottom, a limitation that is not caused by insufficient motor power. In high-viscosity applications, fluid motion is restricted by the rheological resistance of the formulation rather than the horsepower supplied to the shaft.

Why High-Viscosity Materials Stop Moving at the Vessel Surface

In low-viscosity systems, turbulent flow distributes momentum throughout the vessel and material circulates continuously. As viscosity climbs, that behavior changes. Flow turns laminar, and the batch moves in stable, parallel layers that glide past one another without meaningful exchange. Energy from the mixing blade concentrates in the immediate shear zone and dissipates before reaching the vessel perimeter.

The result is a stationary boundary layer at the wall and at the base, both of which are regions where pigment, dense powders, and high-solids resins accumulate and never return to the mixing zone. Shear-thinning behavior compounds the effect. Under the blade, the batch thins and flows relatively freely, but at the perimeter, where shear stress drops, the same material stiffens. Extending the mixing cycle will not solve this problem, as the stiff material is completely isolated from the shear zone.

What the Wall and Bottom Scraper Do Inside the Vessel

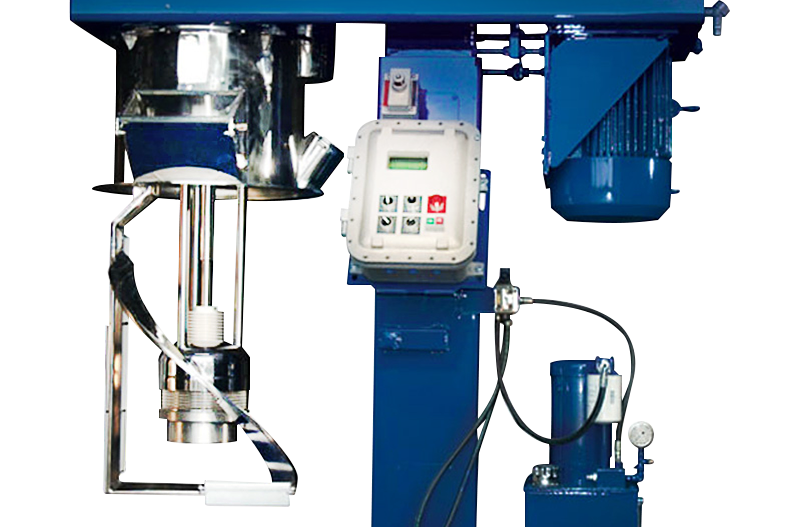

The wall and bottom scraper is a blade contoured to maintain close clearance with both the cylindrical wall and the vessel base as the shaft rotates. That geometry enables continuous surface clearance, making it a constant part of the mixing cycle.

As the blade travels the wall and bottom, it lifts stagnant material off both surfaces and folds it inward toward the active shear zone. Throughout the mixing run, every region of the batch experiences uniform energy dissipation. As a result, complete material incorporation happens naturally along the blade’s sweep path instead of being limited to the agitator’s direct reach.

The distinction from manual scraping is functionally significant. When a vessel is scraped by hand between processing stages, the wall and base accumulate a stationary layer during each interval. The scraper blade eliminates that interval, and the surface never becomes a repository for unincorporated material, because the clearing is continuous.

Optimizing Temperature Transfer Through Continuous Surface Clearance

High-viscosity mixing vessels are typically jacketed, with a heating or cooling medium circulating through the wall to control batch temperature. How well that thermal exchange works depends on the condition of the interior wall surface throughout the run.

An unmixed, stagnant layer of high-viscosity material functions as an unintended thermal insulator. When a stationary boundary layer forms against the vessel wall, the jacket setpoint and the actual bulk temperature diverge. Instead of dispersing throughout the mixture, thermal energy or cooling becomes trapped within that stagnant surface film. The longer the layer remains undisturbed, the wider the deviation grows.

The scraper blade continuously renews that layer, replacing it with fresh bulk material and restoring contact between the jacket surface and a representative cross-section of the batch. The thermal gradient between the jacket and the batch stays intact, and heat transfer remains efficient across the full wall area throughout the mixing cycle.

The formulation risks on both ends of this spectrum are real. Material held at a localized wall temperature significantly above the bulk batch can undergo premature cross-linking or viscosity shifts that will not appear in a center sample drawn at the end of the run. Material that has been cooling at the perimeter, below the bulk temperature, can stiffen sufficiently to trap undispersed components in place.

Continuous scraper action mitigates these thermal risks by maintaining a tight temperature profile throughout the batch, stabilizing viscosity throughout processing, and shortening heating and cooling cycles as the jacket constantly interfaces with a refreshed surface rather than an insulating layer of material.

How to Match the Blade Set to the Batch

The scraper operates as part of a blade set in a 2- or 3-shaft configuration, working alongside a high-shear disperser or anchor-style agitator that covers the central vessel volume. The division of function is clear: the disperser delivers concentrated shear energy to drive agglomerate breakdown and particle incorporation, while the scraper ensures that the wall and base clear continuously so the full batch cycles through that energy. Neither blade achieves on its own what the combination does.

The right way to approach configuration is by matching shaft count and blade geometry to the rheology of the specific formulation. A material with high yield stress and pronounced shear-thinning behavior creates different surface dynamics than a moderately viscous slurry, and the clearances, blade profile, and shaft arrangement should reflect that rather than default to a fixed setup for the vessel size.

This initial selection influences all subsequent equipment decisions: using jacketed vessels for precise temperature control, choosing between vacuum and atmospheric processing based on deaeration needs, and specifying appropriate pumps and discharge valves for non-self-draining formulations. Each of those choices is downstream from the blade configuration. Treating the scraper as a downstream add-on typically means revisiting earlier decisions once the process is running.

Clearing the Path to a Consistent Batch

In high-viscosity mixing, the material that never moves is the material that decides the result. Wall and bottom scrapers address this not by adding more energy to the system, but by ensuring that the energy already in the system reaches every part of the batch.

The concern may be dispersion uniformity within a single run, viscosity consistency across repeated batches, or thermal reliability throughout a long processing cycle. Whether the issue is a blade unable to sweep the wall or a base design that leaves bottom deposits unaddressed, the operational limitation remains the same. Configuring equipment to address those surfaces continuously is what separates a batch that passes inspection from one that performs predictably over time.
