Milling high-viscosity materials introduces a process challenge that is easy to underestimate: heat. The mechanical energy that drives dispersion and particle size reduction also generates thermal energy, and in viscous systems, that heat has nowhere to go quickly. Thick, slow-moving materials resist flow by nature, and that same resistance limits how effectively a jacketed vessel can remove heat from the batch.

For manufacturers working with heat-sensitive formulations, this is not a minor inconvenience. Uncontrolled temperature rise can alter viscosity, destabilize the formulation, or degrade the final product. Managing heat in high-viscosity milling is a process-critical requirement.

Hockmeyer engineered the HCPS Immersion Mill to address this challenge directly. At the center of that design is sweep blade technology, a mechanical solution that transforms passive jacketed cooling into an active heat transfer system. What follows covers why heat transfer breaks down in high-viscosity systems, how the sweep blade counteracts that, and which applications benefit most from this approach.

Why Heat Transfer Breaks Down in High-Viscosity Milling

To understand why the sweep blade matters, it helps to understand the underlying physics of heat transfer in viscous processing environments.

Heat moves through three mechanisms: conduction, convection, and radiation. In industrial milling, radiation plays no meaningful role. The effective modes are conduction — heat transferring through direct contact between the material and the cooled vessel wall — and convection — heat carried away as material circulates through the batch.

High-viscosity materials undermine both.

Because viscous products resist flow, they do not circulate freely inside the vessel. Instead of turning over and exchanging contact with the cooled wall, they stagnate. A layer of warm material forms at the wall surface, acting as insulation between the bulk batch and the cooling jacket. Conduction slows. Convection is limited by the material’s own resistance to movement. The jacketed vessel, which should be the primary cooling mechanism, becomes significantly less effective.

Scale-up compounds the problem further. As the batch size increases, the ratio of cooling surface area to batch volume decreases. At the laboratory scale, the vessel wall represents a large proportion of the overall volume. At production scale, that proportion shrinks substantially, meaning less relative contact area is available to remove the heat generated by a much larger mass of material. Maintaining consistent wall contact becomes even more critical as operations move from pilot to full production.

How the HCPS Sweep Blade Works

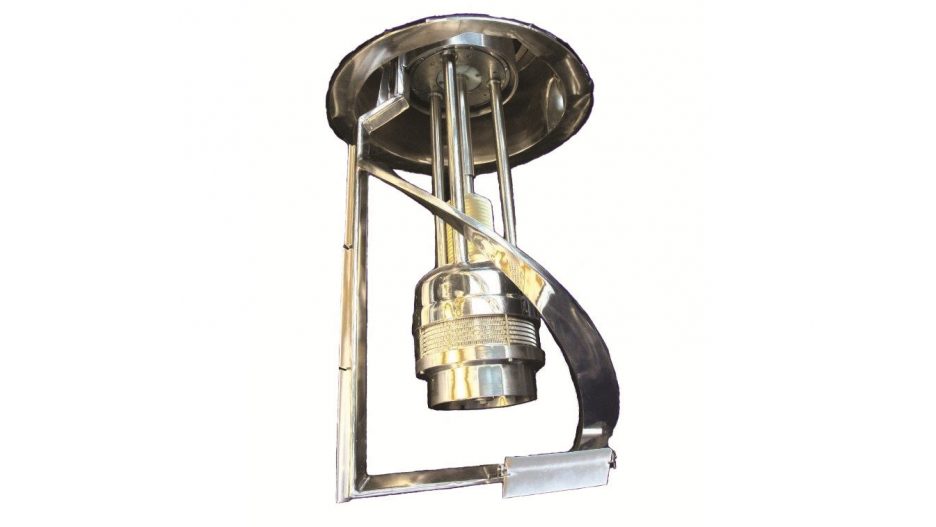

The HCPS addresses the wall contact problem mechanically. Rather than relying on the material to flow toward the cooled surface on its own, the sweep blade continuously clears material from the vessel wall, forcing consistent contact and restoring both conduction and convection across the batch.

Two configurations for different material profiles

The HCPS offers two interchangeable sweep blade designs, each matched to specific material behavior.

The Sidewall Scraper is designed for thixotropic and free-flowing materials. It maintains consistent wall contact for products that have some capacity for movement but still benefit from active surface clearing to prevent insulating film buildup.

The Anchor Helix Scraper is designed for higher-density, slow-flowing products. Its geometry addresses the more pronounced stagnation zones that develop with heavy, viscous materials, where passive wall contact is insufficient to sustain effective heat removal.

Both configurations operate on the same principle: by physically moving material away from the vessel wall on a continuous basis, the blade eliminates the insulating boundary layer and re-establishes direct contact between fresh, cooler material and the jacketed surface. This activates forced conduction at the wall and creates the convective movement that the material’s viscosity would otherwise suppress.

Hockmeyer’s high-viscosity mixers are built around this kind of controlled, mechanically driven process management, ensuring that heat transfer performance does not degrade as material demands increase.

The Auger’s Supporting Role

The sweep blade handles the vessel wall, but effective thermal control across the full batch requires addressing the upper draft tube as well.

Inside the draft tube, material that is not actively circulated can form a film on the inner surface. This film reduces the cooling contribution of the surrounding jacket in that zone, creating a thermal gap in the system. Left unaddressed, it limits the mill’s overall heat transfer efficiency, regardless of how well the sweep blade performs at the wall.

The auger prevents this. By continuously feeding material into the media field below, the auger keeps product moving, disrupting film formation and sustaining the jacket’s cooling effect in that zone. This circulation also introduces cooler material into the active milling region consistently, creating additional zones of forced conduction and convection throughout the batch.

The sweep blade and the auger are not independent components with separate functions. They work together as an integrated system. The blade maintains wall contact and drives surface-level heat transfer; the auger maintains internal circulation and prevents thermal dead zones. Together, they provide thermal stability across the entire batch volume, not just at the vessel perimeter.

Applications and Process Considerations

Sweep blade technology delivers the greatest value when passive cooling is structurally insufficient for the process requirements. Several material profiles meet that criterion.

The HCPS is designed to handle thixotropic, Newtonian, high-density, and heat-sensitive products, with a viscosity range up to 2 million cps. For heat-sensitive formulations in particular, active wall scraping is not optional. At high viscosity and production scale, jacketed cooling alone cannot maintain adequate thermal control. The boundary layer effect is too significant, and the consequences of unmanaged temperature are too serious, for passive methods to be reliable.

From Engineering to Production: What Sweep Blade Technology Delivers

The central outcome of the HCPS sweep blade design is straightforward: it turns a jacketed vessel from a passive cooling surface into an active heat transfer system. That shift has direct consequences for process performance.

When the boundary layer is consistently cleared and wall contact is maintained, heat removal operates at the level the jacket is designed to provide. Temperature stays controlled. Viscosity profiles remain stable. Formulation integrity is protected throughout the milling cycle. These conditions are prerequisites for batch-to-batch consistency and are especially critical for heat-sensitive products where even moderate temperature variation can affect final quality.

The interchangeable blade configurations add process flexibility without compromising thermal control. Switching between the Sidewall Scraper and the Anchor Helix Scraper allows operators to match the mechanical action to the material, rather than adapting the formulation to the equipment’s limitations.

For manufacturers working with high-viscosity, heat-sensitive, or high-density materials at production scale, understanding how the HCPS manages viscous mixing temperature control is the first step toward evaluating whether it is the right fit for their process. To discuss your specific formulation and processing requirements, speak with Hockmeyer’s team.
